Coppo

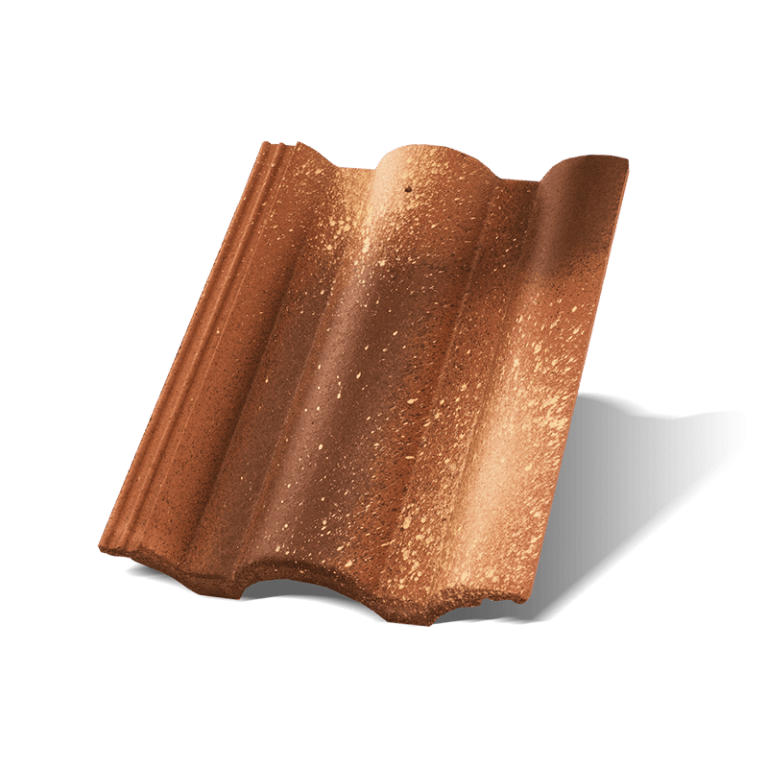

Coppo base tile Ferrara

Name: Coppo base tile Ferrara
Brand: Terrán Tetőrendszer

Surface treatment

Colorsystem előnyei:

Warranty 50 years

	Pc/pallet	Elements required
Coppo edge tile	28	3 pcs/gable edge lm
Coppo apex tile	128	2.7 pcs/ridge lm
Coppo ventilation tile	max. 126	per rafter gap min. 3 pc
Coppo starting ridge tile	52	1 pc/edge ridge
Coppo 3-way apex tile	28	1 pc/apex
Coppo 4-way apex tile	6	1 pc/apex
Coppo half-saddle tile	52	3.3 pcs/lm
Coppo half-saddle edge tile, R/L	16	As required
Coppo half tile	168	As required

Productoduct		Elements required	Applicability (color)
	Ventilation strip PVC
	Closing comb	1 pc/eaves lm
	Combed eaves ventilation element	1 pc/eaves lm
	Eaves clip / Storm clip E	As required
	Drip plate, colored (steel)	1 pc/2 eaves lm
	Drip plate (steel)	1 pc/2 eaves lm
	Aluminum ventilation strip	1 roll/10 eaves lm

Productoduct		Elements required	Applicability (color)
	Storm clip H
	Cut tile fastener bracket H	As required
	Universal metal step element	As required
	Railing set for safety grid
	Snow grate support element	1,33 db/fm
	Snow grate	0,67 db/fm
	Metal snow grip element	1,5–2,5 db/m2
	Eaves clip / Storm clip E	As required
	Safety grate holder, colored
	Safety roof hook	As required
	Safety step grate, colored (80 cm)
	Safety step grate, colored (40 cm)
	Safety step grate (80 cm)
	Safety step grate (40 cm)

Productoduct		Elements required	Applicability (color)
	Flashing	1 pc/2 lm
	Easy Form (chimney and wall edge)	1 roll/5 lm

Productoduct		Elements required	Applicability (color)
	Fastener screw	1 pc/starting or distribution apex
	MediRoll GRAT	1 roll/5 ridges or edge ridge lm
	MediRoll ECO	1 roll/5 ridges or edge ridge lm
	MediRoll ALU	1 roll/5 ridges or edge ridge lm
	Apex tile fastener
	Apex tile sealer	1 pc/ridge cap
	Ridge beam holder	1 pc/rafter stand

Productoduct		Elements required	Applicability (color)
	Lightning conductor holder for base tile Ø 8 mm	1,5 db/lm
	MediFol STOP	roof m² + 15%
	Safety roof hook	As required

Productoduct		Elements required	Applicability (color)
	Storm collar (DN 110-125)
	Universal gasket (DN 110-180)
	Universal roof access
	Universal duct and room ventilation adapter (DN 110)	1 pc per duct ventilation
	Universal pass-through base tile (DN 125)	1 pc/transmission
	Roof access hatch (65x65 cm)
	Roof access hatch (45x55 cm)
	Solar conductor adapter (DN 110)	1 pc/transmission
	Plastic (through) base tile (DN 110) Coppo, Renova Plus	1 pc/transmission
	Room ventilation adapter (DN 125)	1 pc per room
	Conduit DN 110	1 pc per feed-through
	Conduit DN 125	1 pc per feed-through
	Flue gas pipe adapter (DN 125)	1 pc/flue outlet
	Flue gas pipe adapter (DN 110)	1 pc/flue outlet
	Duct ventilation unit, Coppo	1 pc/gutter ventilation
	Translucent tile	min. 1 piece/lighting
	Antenna outlet adapter (DN 110)	1 pc/antenna outlet

Productoduct		Elements required	Applicability (color)
	Valley edge (60 mm)	2 pieces/water flow meter
	Valley element (steel)	1 piece/1.8 meters of water flow

Productoduct		Elements required	Applicability (color)
	Nail sealing tape TPK	As required
	MediFol Wind Plus Black	roof m² + 15%
	MediFol Wind Plus 150	roof m² + 15%
	MediFol Wind Plus	roof m² + 15%
	MediFol TOP 270	roof m² + 15%
	MediFol TEC	roof m² + 15%
	MediFol SILVER	roof m² + 15%
	MediFol SD	roof m² + 15%
	MediFol GENERON LONGLIFE PLUS	roof m² + 15%
	MediFol GENERON LONGLIFE	roof m² + 15%
	MediFol 150	roof m² + 15%
	MediFol FORTE	roof m² + 15%
	MediFol EXTREME	roof m² + 15%
	MediFol 140	roof m² + 15%
	Double-sided foil adhesive (50 lm)	As required
	Single-sided foil adhesive (25 lm)	As required

Size	330 x 420 mm
Coverage width	300 mm
Mass	4,40 kg/piece
Batten size	min. 30/50 mm
Coverage length, batten distance	max. 340 mm (depending on roof pitch)
Side overlap	30 mm
Top overlap	min. 80 mm (depending on pitch)
pcs/pallet	252
Elements required	9.80–10.42 pcs/m²
Color	Ferrara
Hue	Brown
Surface treatment	Colorsystem
Fastening	see 4.11. Replacement fasteners paragraph under chapter section (Terran Application Guide)
