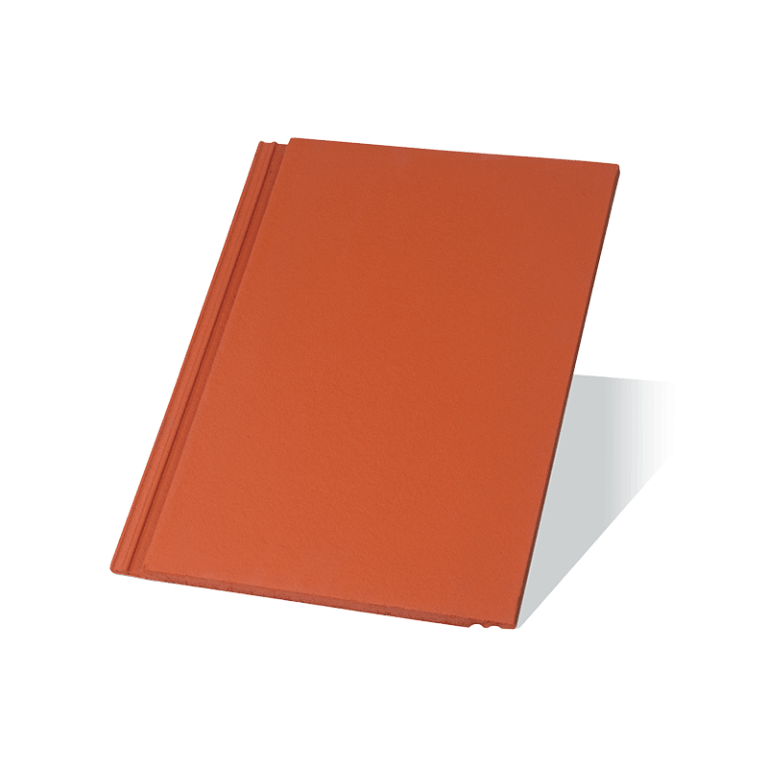

Zenit Max base tile Mars

Name: Zenit Max base tile Mars
Brand: Terrán Tetőrendszer

Surface treatment

ClimaControl előnyei:

Garancia* 50 years

	Pc/pallet	Elements required
Zenit Max three-quarter tile	max.144	As required
Zenit Max edge tile	36	1,5-1,6 pc/lm
Zenit Max 3/4 edge tile R/L	60	1,5-1,6 pc/lm
Zenit Max apex tile	128	2.7 pcs/ridge lm
Zenit Max ventilation tile	108	per rafter gap min. 3 pc
Zenit Max starting ridge tile	52	1 pc/edge ridge
Zenit Max 3-way apex tile	28	1 pc/apex
Zenit Max 4-way apex tile	6	1 pc/apex

Productoduct		Elements required	Color
	Cut tile fastener bracket S	As required
	Universal metal step element	As required
	Railing set for safety grid
	Snow grate support element	1,33 db/fm
	Snow grate	0,67 db/fm
	Metal snow grip element	1,5–2,5 db/m2
	Eaves clip / Storm clip E	As required
	Safety grate holder, colored
	Safety roof hook	As required
	Safety step grate, colored (80 cm)
	Safety step grate, colored (40 cm)
	Safety step grate (80 cm)
	Safety step grate (40 cm)

Productoduct		Elements required	Color
	Flashing	1 pc/2 lm
	Gable edge element (steel)	1 pc/1.8 gable edge gutter meter
	Easy Form (chimney and wall edge)	1 roll/5 lm

Productoduct		Elements required	Color
	Fastener screw	1 pc/starting or distribution apex
	MediRoll GRAT	1 roll/5 ridges or edge ridge lm
	MediRoll ECO	1 roll/5 ridges or edge ridge lm
	MediRoll ALU	1 roll/5 ridges or edge ridge lm
	Apex tile fastener
	Apex tile sealer	1 pc/ridge cap
	Ridge beam holder	1 pc/rafter stand

Productoduct		Elements required	Color
	Lightning conductor holder for base tile Ø 8 mm	1,5 db/lm
	MediFol STOP	roof m² + 15%
	Safety roof hook	As required

Productoduct		Elements required	Color
	Storm collar (DN 110-125)
	Universal gasket (DN 110-180)
	Universal roof access
	Universal duct and room ventilation adapter (DN 110)	1 pc per duct ventilation
	Universal pass-through base tile (DN 125)	1 pc/transmission
	Roof access hatch (65x65 cm)
	Roof access hatch (45x55 cm)
	Solar conductor adapter (DN 110)	1 pc/transmission
	Plastic (through) base tile (DN 110) Zenit Brick	1 pc/transmission
	Plastic (through) base tile (DN 110) Zenit	1 pc/transmission
	Plastic (through) base tile (DN 110) Rundo	1 pc/transmission
	Room ventilation adapter HV 160, Zenit	1 pc/room to be ventilated
	Room ventilation adapter (DN 125)	1 pc per room
	Conduit DN 110	1 pc per feed-through
	Conduit DN 125	1 pc per feed-through
	Flue gas pipe adapter (DN 125)	1 pc/flue outlet
	Flue gas pipe adapter (DN 110)	1 pc/flue outlet
	Duct ventilation unit, Zenit	1 pc/gutter ventilation
	Antenna outlet adapter (DN 110)	1 pc/antenna outlet

Productoduct		Elements required	Color
	Valley edge (30 mm)	2 pieces/water flow meter
	Valley element (steel)	1 piece/1.8 meters of water flow

Productoduct		Elements required	Color
	Nail sealing tape TPK	As required
	MediFol Wind Plus Black	roof m² + 15%
	MediFol Wind Plus 150	roof m² + 15%
	MediFol Wind Plus	roof m² + 15%
	MediFol TOP 270	roof m² + 15%
	MediFol TEC	roof m² + 15%
	MediFol SILVER	roof m² + 15%
	MediFol SD	roof m² + 15%
	MediFol GENERON LONGLIFE PLUS	roof m² + 15%
	MediFol GENERON LONGLIFE	roof m² + 15%
	MediFol 150	roof m² + 15%
	MediFol FORTE	roof m² + 15%
	MediFol EXTREME	roof m² + 15%
	MediFol 140	roof m² + 15%
	Double-sided foil adhesive (50 lm)	As required
	Single-sided foil adhesive (25 lm)	As required

Color	Mars
Hue	Brick
Surface treatment	ClimaControl
Size	330 x 420 mm
Coverage width	300 mm
Batten size	min. 30/50 mm
Coverage length, batten distance	305-340 mm
Side overlap	30 mm
Top overlap	min. 80 mm (depending on pitch)
pcs/pallet	216
Mass	5,1 kg/pc
Fastening	see 4.11. Replacement fasteners paragraph under chapter section (Terran Application Guide)
Elements required	9,8 - 10,58 pc/m²
Compatibility	Generon
